Component Nodes

Components are available building blocks that define capabilities in SuperPlane. A component node is one instance of a component on the canvas. When you add a component to your canvas, it becomes a node that can receive events, perform work, and emit payloads.

Components vs Component Nodes

• Component: The building block definition — what it does, what configuration it needs, what it emits
• Component Node: A single instance of a component placed on your canvas with specific configuration

Think of it like this: a component is the reusable definition, and a component node is one concrete instance with its own settings and name.

Component Types

There are two types of executable components (nodes that participate in runs):

Trigger Components

Trigger components start workflow executions. They listen for external events or can be invoked manually.

Examples: Webhook, Schedule, Manual Run, GitHub onPush, Slack onAppMention

Action Components

Action components execute operations in response to upstream events. They subscribe to events, perform operations, and emit payloads for downstream nodes.

Examples: HTTP Request, Filter, Approval, GitHub runWorkflow, Slack sendMessage

Adding component nodes to the canvas

You must be in Edit mode to add or modify nodes. Click Edit in the canvas header to enter edit mode.

New component nodes can be added in two ways:

From the Components Menu

1. Click the ”+ Components” button in the top right of the canvas
2. Select a component from the list of available components
3. Drag it onto the canvas where you want it

The component is now a node on your canvas, ready to be configured and connected.

From Output Channels

You can also drag an output channel from an existing node to an empty space on the canvas. This creates a new component node and automatically subscribes it to that output channel, making it faster to model workflows.

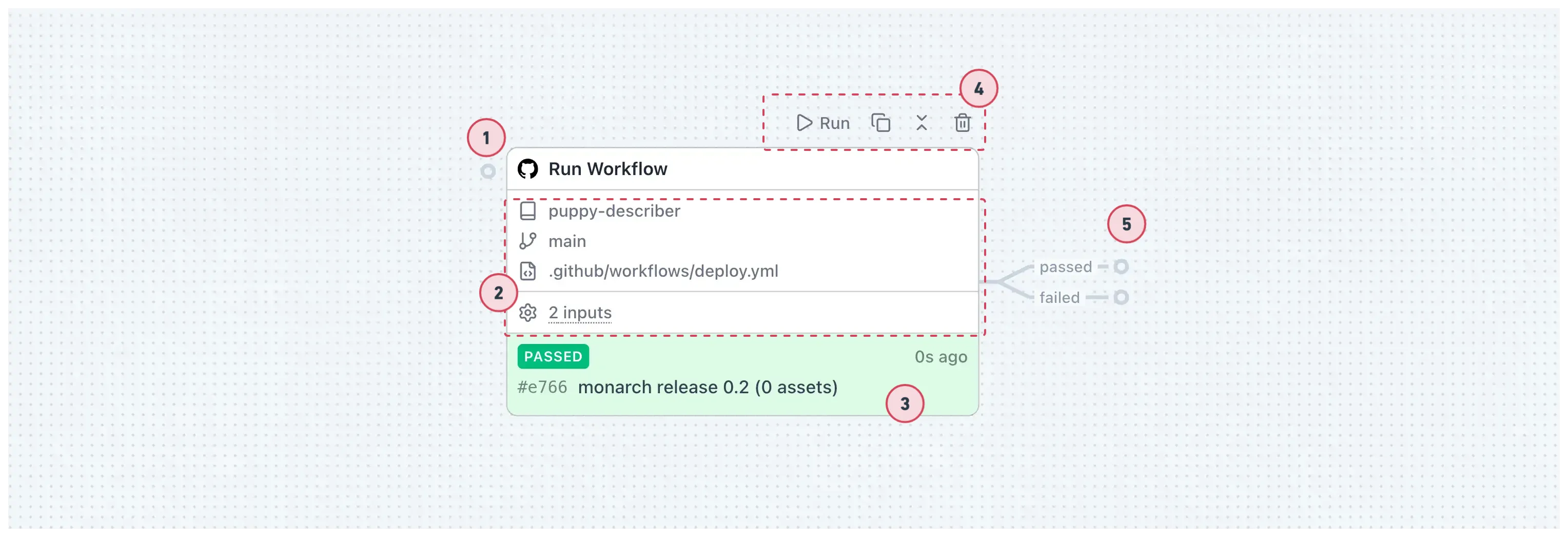

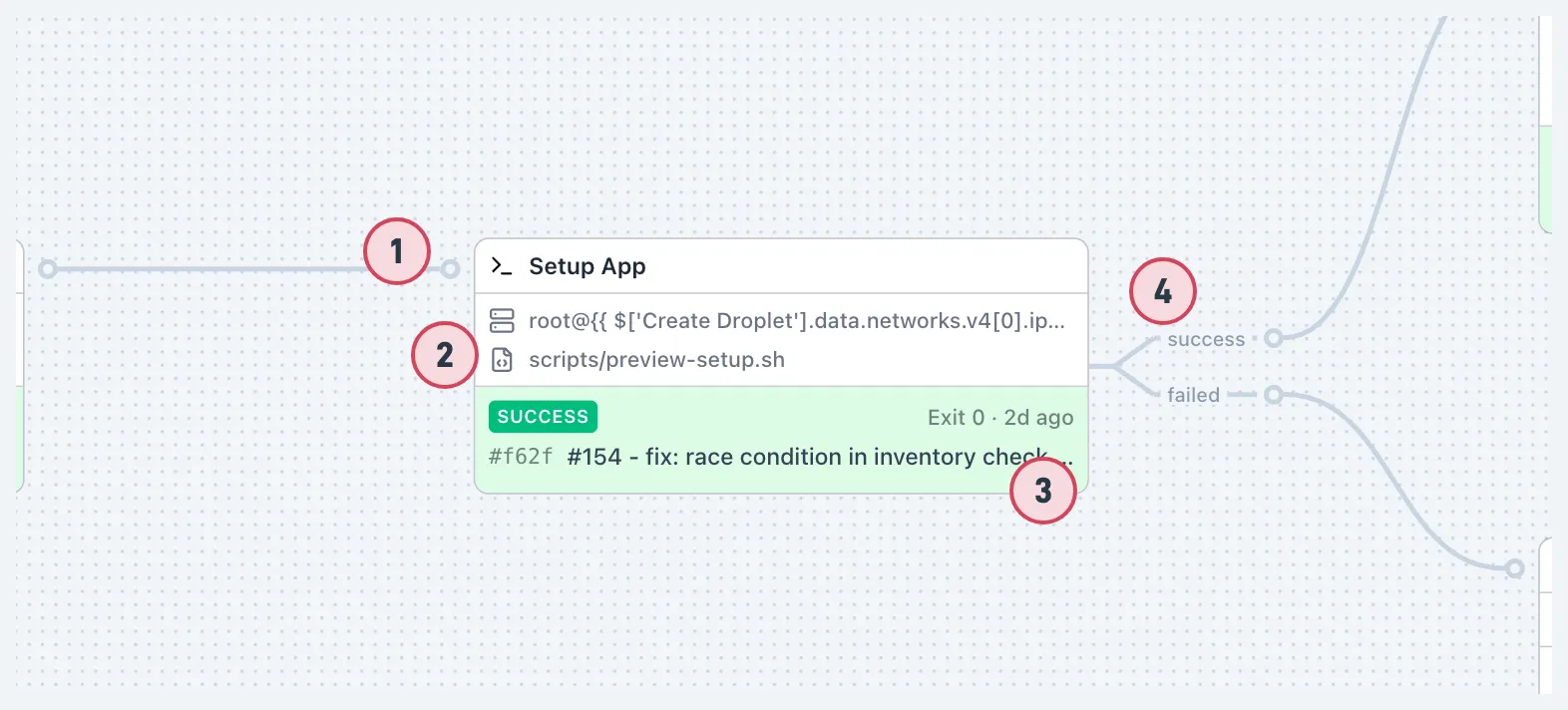

Node overview on canvas

Each component node on the canvas displays key information and provides interactive elements:

1. Input channel — Drag to subscribe to events from other nodes (action nodes only).
2. Configuration overview — Quick summary of key settings for this node.
3. Latest run item — Shows the last execution that passed through this node, with its status and timestamp.
4. Output channels — Named output channels (e.g., success, failed). Subscribe other nodes or drag to create new components.

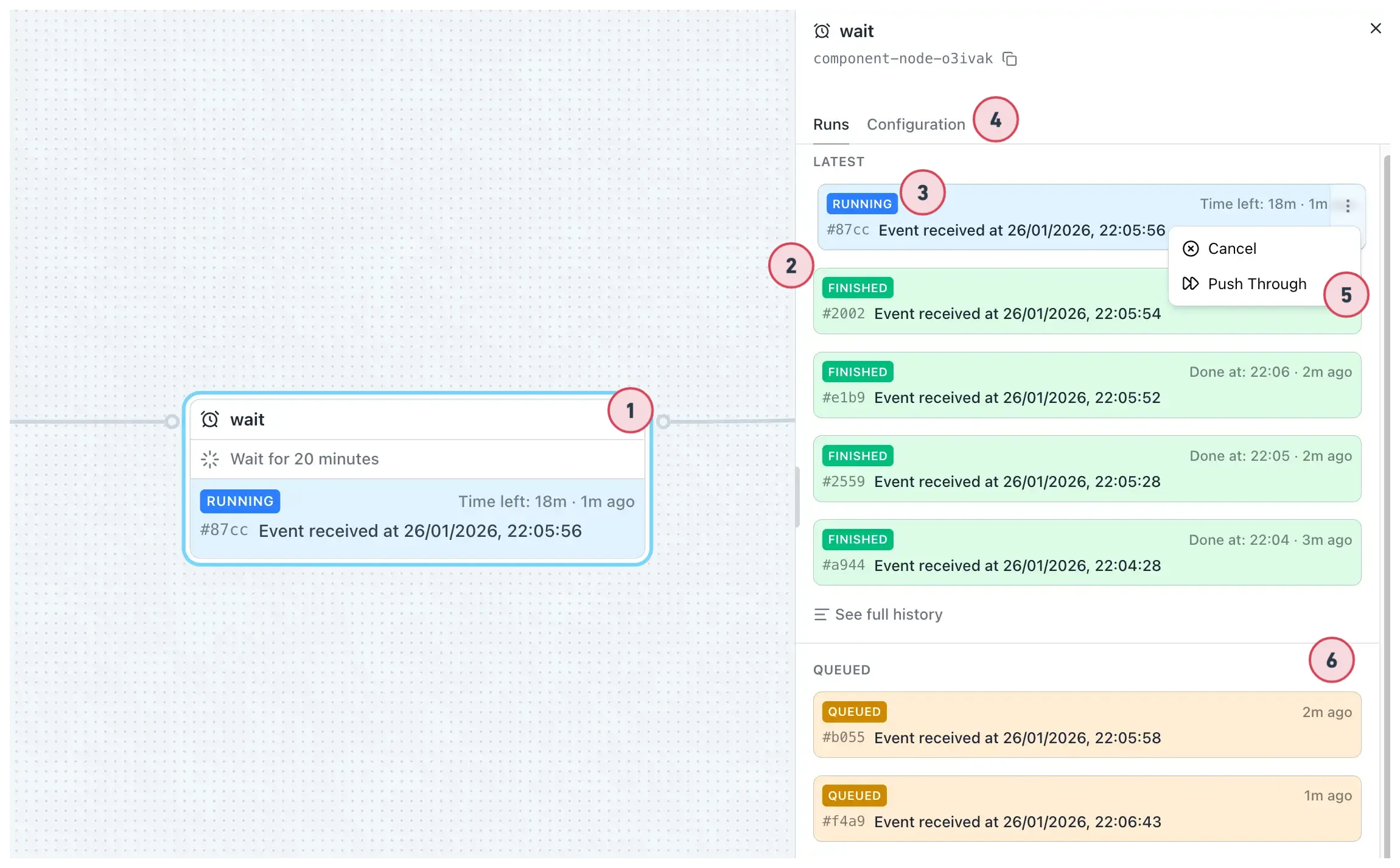

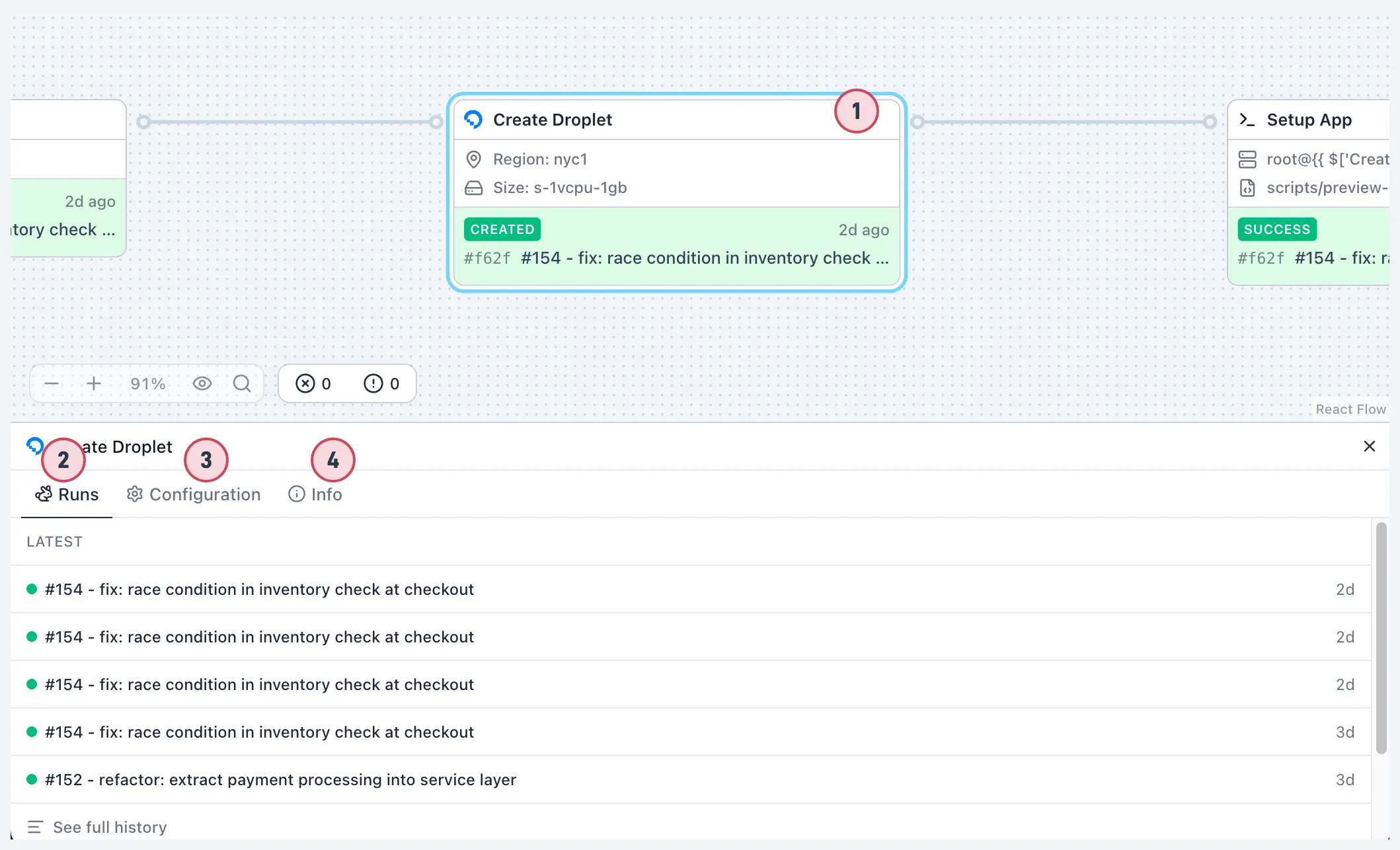

Component node inspector

Click on a component node to select it and open the inspector panel at the bottom of the canvas.

1. Selected node — The node is highlighted on the canvas. The bottom panel shows its details.
2. Runs — Recent executions with run ID, PR reference, and timestamp. Click a run item to inspect it. Running or waiting items can be cancelled or pushed through from the action menu.
3. Configuration — Node settings. Fields support expressions for dynamic values.
4. Info — Component documentation and usage reference.

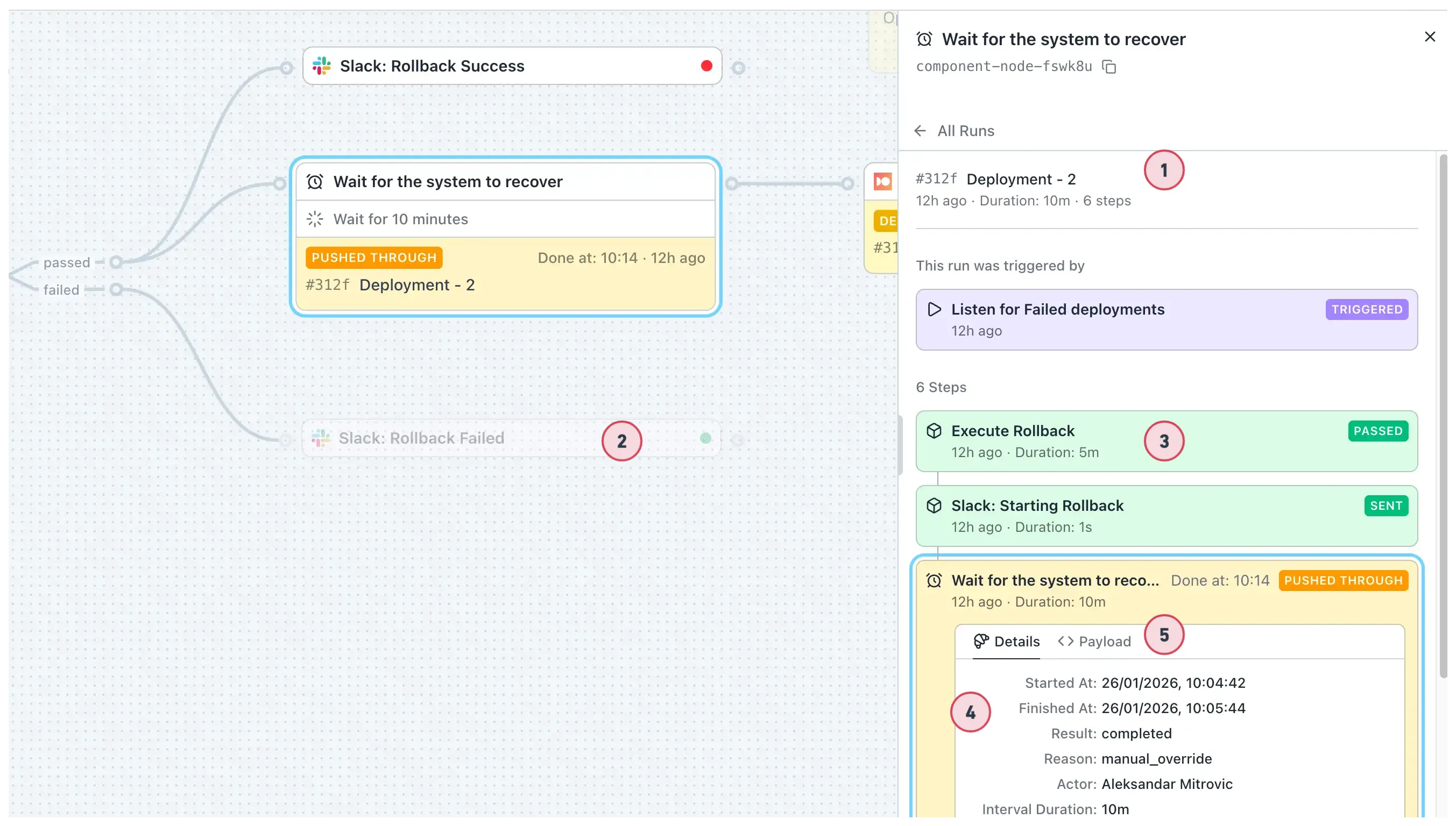

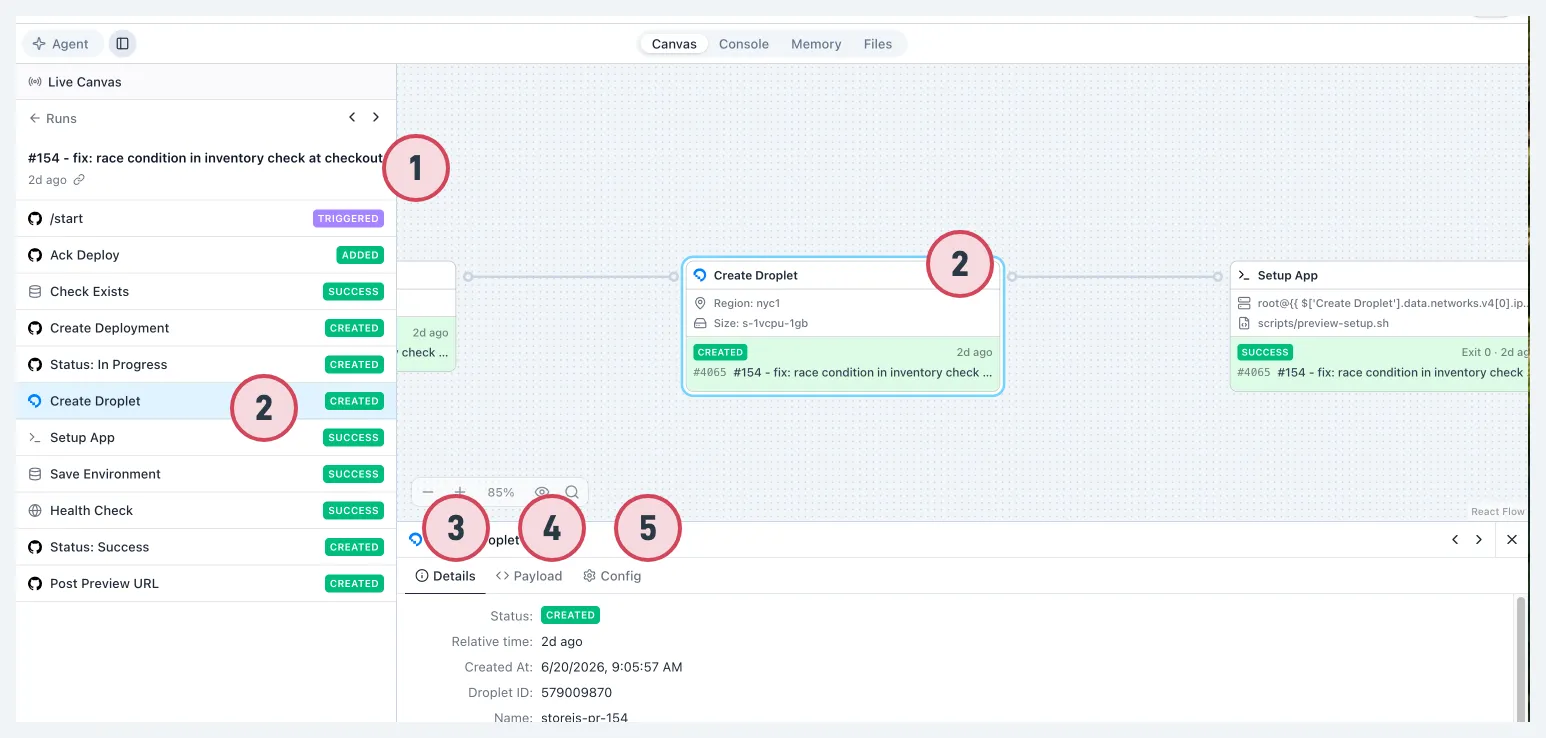

Inspecting a run

Select a run from the Runs tab or from the Runs sidebar to inspect it. The canvas highlights the path the run took, dimming nodes that were not part of the execution.

1. Selected run — The sidebar shows the full execution chain with every node and its status.
2. Node selection — Click a node in the sidebar or directly on the canvas to inspect its execution.
3. Details — Execution summary: status, timestamps, and component-specific output fields.
4. Payload — The data this node emitted for downstream nodes.
5. Config — Resolved configuration snapshot at execution time (same as $['Node Name'].config in expressions). See Expressions.

Component Availability

Components are provided by integrations. SuperPlane includes:

• Core components: Built-in components like Webhook, Filter, HTTP Request
• Integration components: Components from integrations like GitHub, Slack, PagerDuty

To use integration components, you may need to configure authentication or connection settings for that integration first.

Browse the Components section to see all available components and their documentation.

Best Practices

When working with component nodes:

• Choose the right component: Understand what each component does before using it
• Use expressions: Make configurations dynamic by referencing upstream data
• Name nodes clearly: Use descriptive names that indicate purpose
• Test incrementally: Verify component behavior before building complex workflows
• Monitor run history: Check execution history to understand behavior and debug issues

For more details on how component nodes connect and how data flows between them, see Data Flow. For information about the canvas where you work with component nodes, see Canvas.
